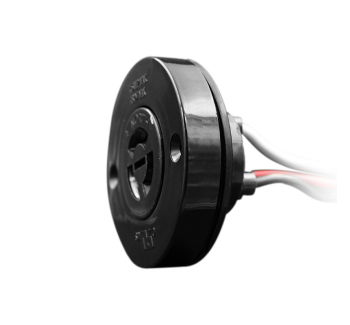

All the JL-230 series receptacles are intended to be pre-mounted onto those lanterns designed to fit an ANSI C136.10 twist-lock photocontrol.
Especially , JL-230F is intended to prevent water entrance through the wire strands.
This series also offers 360° rotation limiting feature to conform ANSI C136.10 requirements, in case rotatable.

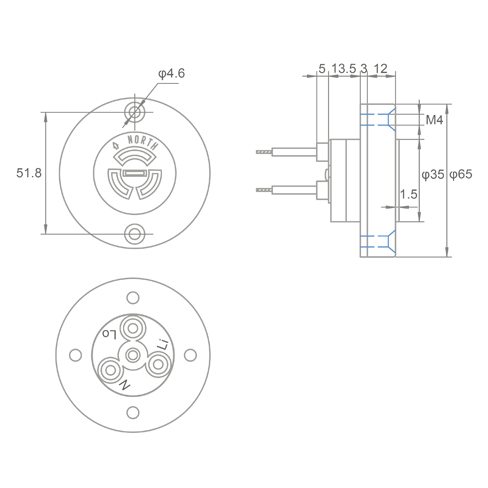

Product size
Product Features

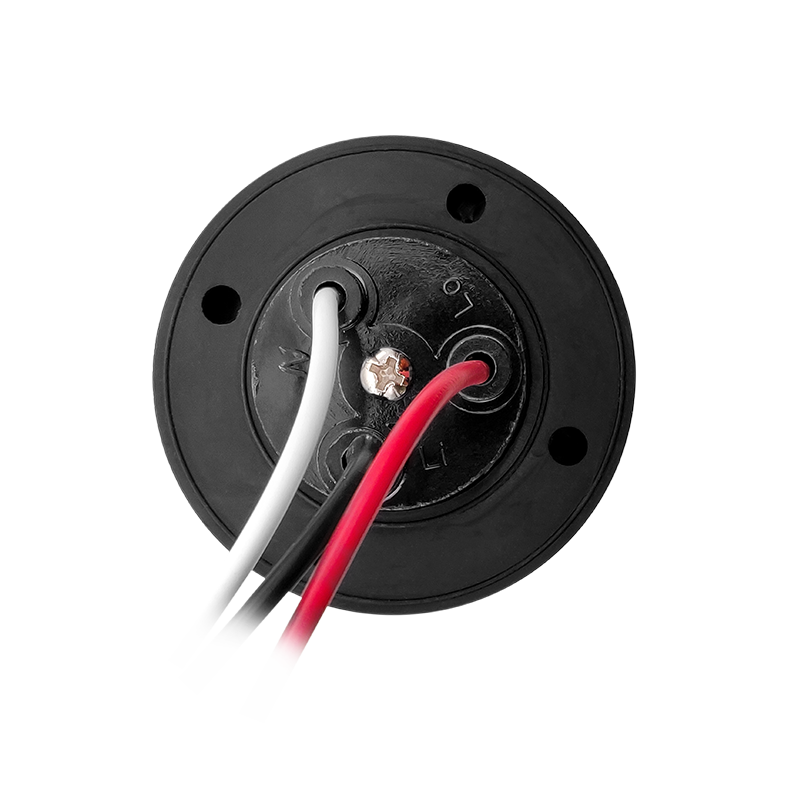

2 or 4 screws holes available
Bakelite body for long-life service
Nylon holder prevents cracks

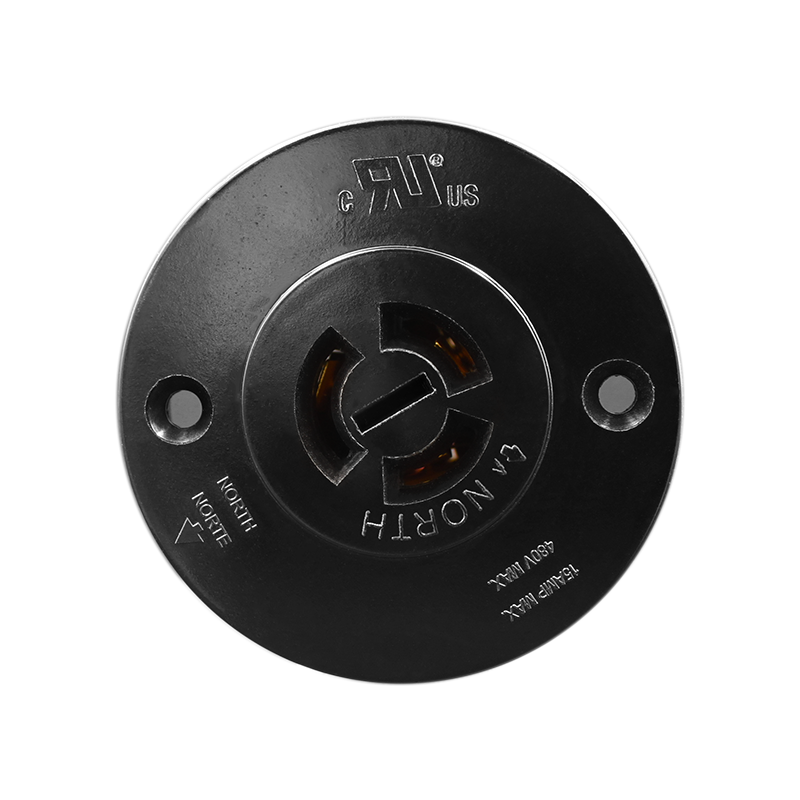

The screw can be loosened to find the north, making it convenient for the installation of the light controller (default north direction during installation), avoiding the decline of the light sensitive components of the light controller and extending its service life
Model No. | JL-230 | |
Rated Voltage | 480VAC Max | |
Rated Frequency | 50/60Hz | |
Lead | 16AWG,14AWG 6" min | |
Ambient Temperature | -40°C ~ +70°C | |
Related Humidity | 96% | |
Load Rating | 15 A | |
Holding Cover | Nylon | |
Receptacle | Phenolic (Bakelite) | |
Contact | H62 Brass | |
Gasket | Silicon Rubber | |
Cable Line | ● - | |
IP65 | ● | |
Certifications | ANSI C136.10-2010
| |
