Similar to Zhaga Book-18 standard, JL-770L socket is suitable for 0-10V dimming scheme, which is convenient for developing standard equipment suitable for road lighting, regional lighting or residential lighting.
According to the equipment arrangement, these equipment can adopt monitoring, communication, control and other functions based on 0-10V dimming.

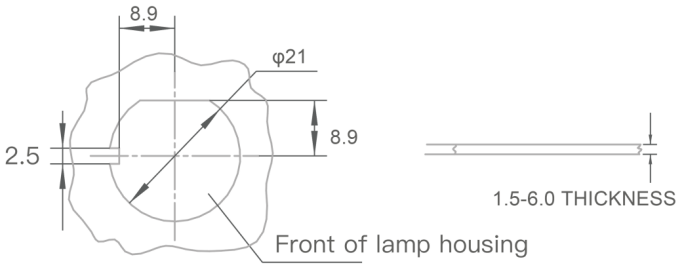

Drilling plan
Product Features
Cable (red, yellow, purple and black)
Compact size allowing greater flexibility in luminaire design
Advanced sealing to achieve IP66 with no mounting screws
Scalable solution allows use of Ø40mm photocell and Ø80mm LEX-M in a central management system with the same connection interface
Flexible mounting position, upwards, downwards and sideways facing
Integrated single gasket that seals to both luminaire and module that minimizes assembling time
Model No. | JL-770L |
Rated Voltage | 24VDC |
Related Humidity | 96% |
Ambient Temperature | -40°C ~ +70 °C |
*Wires | AWM 1015,18/20/22 AWG,105°C AWM 1007,18/20/22 AWG,80°C |
IP | IP66 |
Certifications |
|
*Conductor specification: # 20 conductor has UL certification
