JL-471CC （one channel，LTE Cat.1）
JL-471CC （one channel，LTE Cat.1）
JL-471CC （one channel，LTE Cat.1）
JL-471CC （one channel，LTE Cat.1）

JL-471CC （one channel，LTE Cat.1）

JL-471CC is a built-in wiring type single light controller developed based on 4G (LTE Cat. 1) communication mode, which can perform remote control, configuration, and real-time monitoring of operating status. The product has a compact size and is easy to install inside the lamp head or in the maintenance hole of the lamp post. Suitable antennas can be selected according to different installation and base station coverage environments. The product is internally glued with a protection level of IP67.

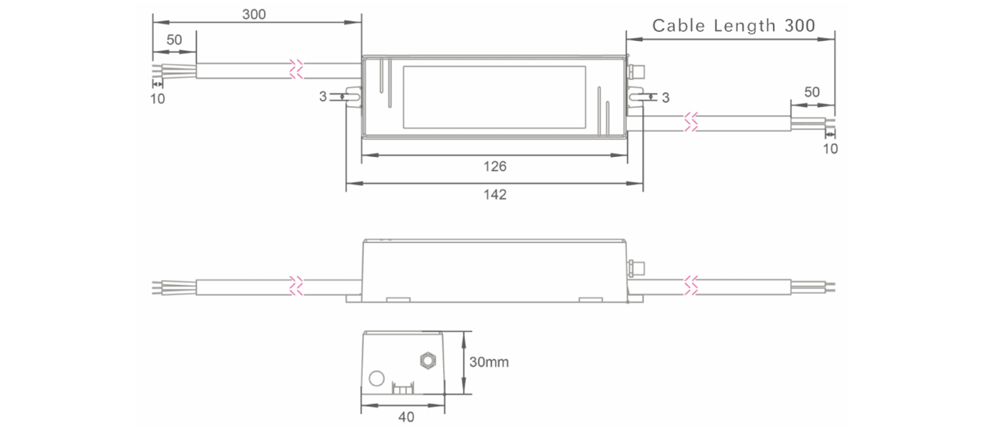

Product size

MetInfo enterprise content manager system | MetInfo CMS

Product Features

  • 85~300VAC wide voltage input

  • Zero crossing switch, ultra-high switch lifespan

  • 6KV/3KA surge protection

  • Undervoltage/overvoltage/overcurrent fault self check report and protection

  • Class2.0 measurement accuracy (voltage/current/power/power factor/cumulative energy consumption)

  • 126 * 40 * 30mm ultra small size

  • ESIM

  • IP67

Power supply

Rated: 100-277VAC; 50/60Hz

Limit: 85~300VAC; 47/63Hz

Dimming output

0-10VDC

Wireless communication

4G (LTE Cat. 1), External antenna, optional

Frequency band: LTE-FDD: B1/B3/B5/B8 LTE-TDD: B34/B38/B39/B40/B41

Carrying capacity

≤9A

Device power consumption

Static: 1.2W Dynamic peak: 2.4W

Working environment temperature

-35~85℃

Working environment humidity

5%RH~99%RH

Shell protection

IP67

Standard

IEC61000-4-5；IEC61000-4-2；IEC61000-4-3，

IEC61000-4-6；GB/T 17743-2017；IEC61000-4-4；

IEC61000-4-11；IEC61000-3-2；GB/T2423.10-2008；

UL94-V0；

Size

126*40*30mm

Weight

0.25KG
