Wiring type

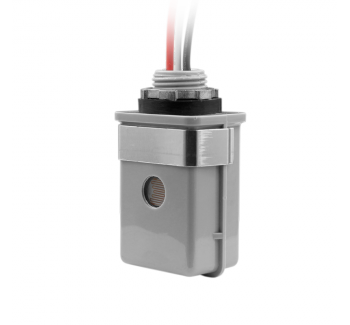

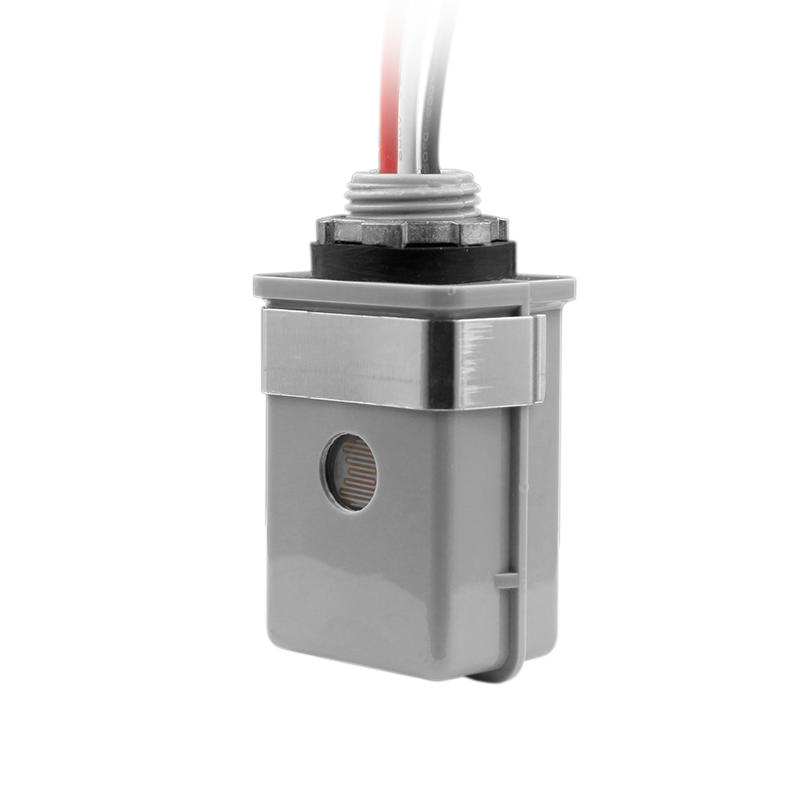

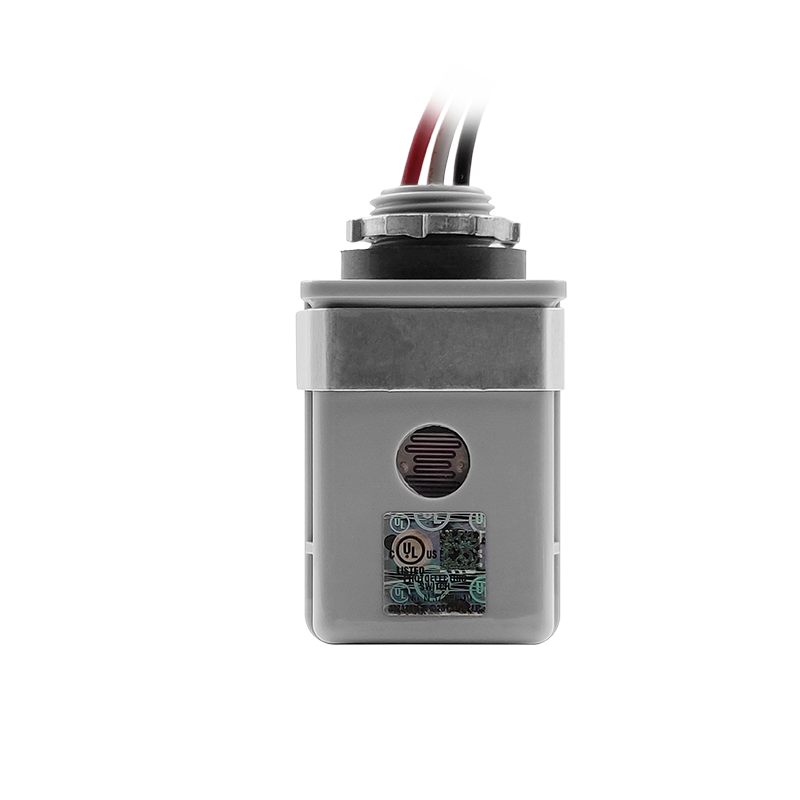

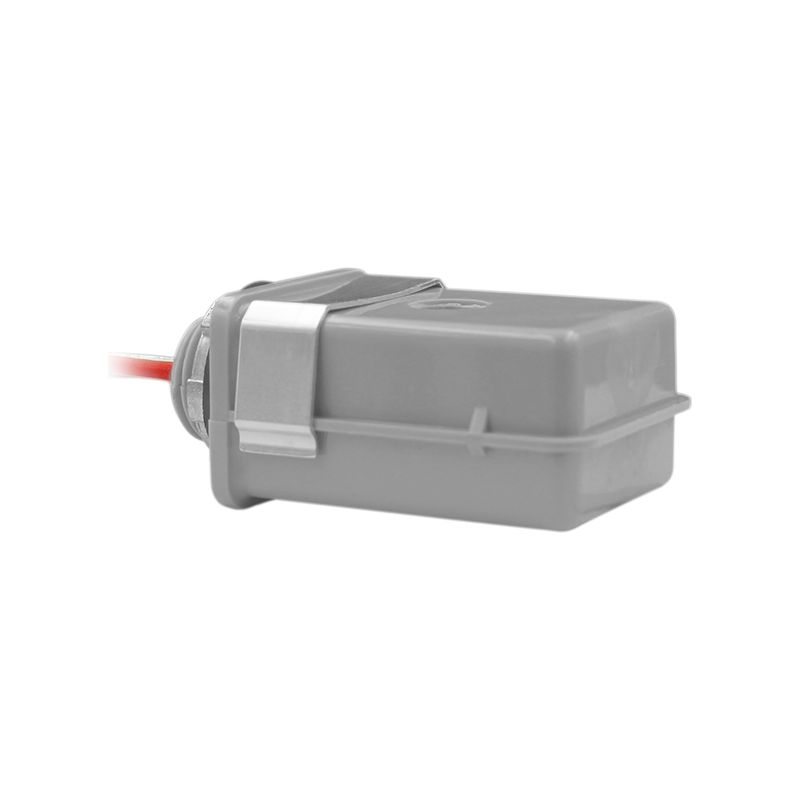

JL-118

The photoelectric switch JL-118 series is applicable to control the passage lighting and doorway lighting automatically in accordance with the ambient lighting level.
This product is designed on the basis of electrical heating structure that provides time delay over 30 seconds to avoid redundant switching against spotlight or lightning during the night time. A temperature compensator system provides consistent performance regardless of the ambient temperature.

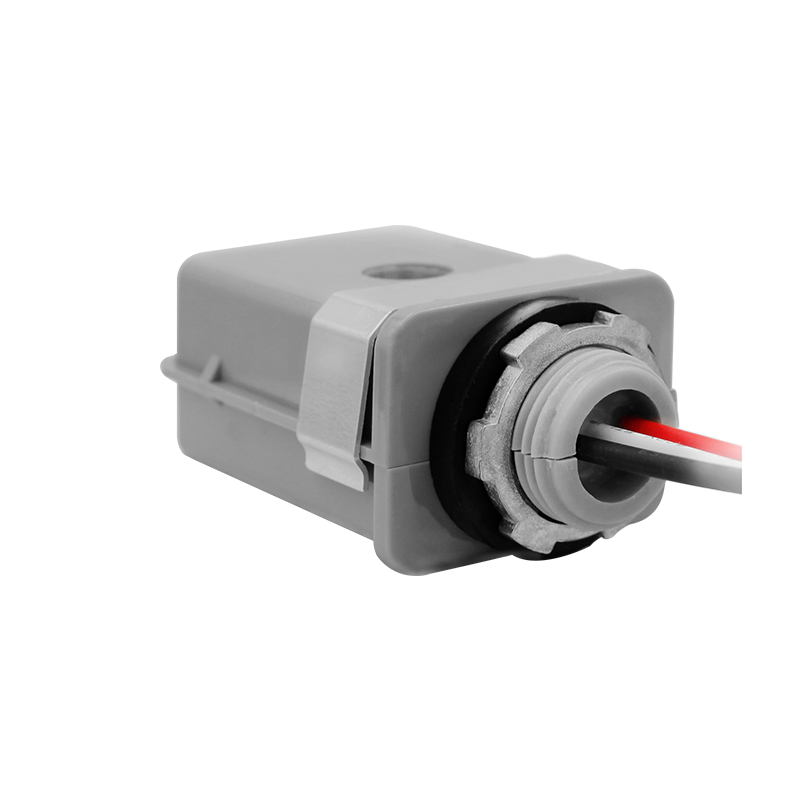

Its swivel version is easy to adjust the direction after installation.

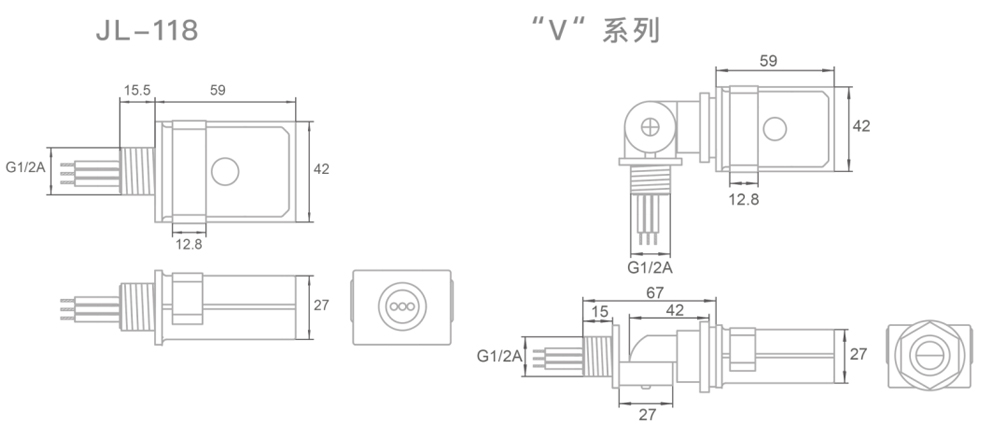

Product size

MetInfo enterprise content manager system | MetInfo CMS

Product Features

  • Time Delay 30~120s

  • Ambient Temperature: -40℃ ~ +70℃

  • Swivel optional

  • Screw Thread(NPT 1/2") & Zinc Alloy Nut

  • UV stabilized PC enclosure

Model No.

JL-118A(V)

JL-118B(V)

JL-118C(V)

JL-118D(V)

Rated Voltage

120VAC

220~240VAC

208~277VAC

277VAC

Applicable Voltage Range

200~305VAC

Rated Frequency

50/60Hz

Rated Loading

1800W  Tungsten,1100VA  Ballast

Power Consumption

1.5W Max.

Operate Levels

10~20Lx   Turn-On / 30~60Lx   Turn-Off

Ambient Temperature

-40℃ ~ +70℃

Related Humidity

96%

Fail Mode

Fail-On

Lead Wire

AWG#16,AWM3321

4"min

Certifications
