JL-246CG photocontrol can apply to independent control application or system control application, such as roads, exhibitions, schools, shopping malls, supermarkets, factories, parks and so on.
This product consists a Zigbee communication module as well as a LTE communication module to allow its Zigbee group remoted with a smart IoT management system.

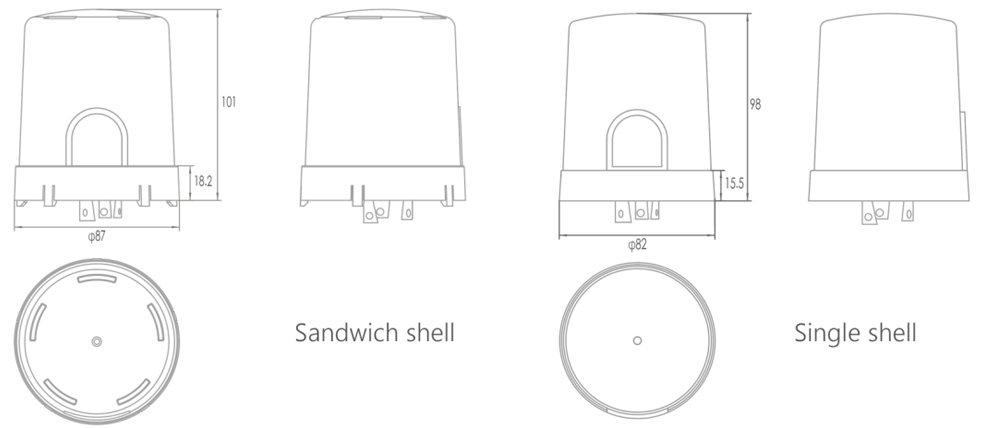

Product size
Product Features
ANSI C136.41 Twist-lock
0~10V Dimming
Surge protection level: 6KV/3KA differential mode
Sandwich cover for Long Life
Multi-Volts Application
IP67 Ready
IR-filtered Phototransistor
Model No. | JL-246CG |
Rated Voltage | 120~277VAC |
Applicable Voltage Range | 105~305VAC |
Rated Frequency | 50/60Hz |
Dimming Output | 0~10VDC |
Wireless Communication（up） | LTE-Cat1 |
Wireless Communication（down） | Zigbee |
Spectral Acquisition Range | 350~1100nm；Peak wavelength 590nm |
Rated Loading | 1000W Tungsten,1000VA Ballast,8A@120VAC/5A@208-277VAC e-Ballast |
Operate Levels | Turn-On＜100Lx，Turn-Off＞150Lx / per client request |
Power Consumption | 1.2W static，10W dynamic |
Ambient Temperature | -40℃~70℃ |
Related Humidity | 96% |
Fail Mode | Fail-On |
Shell material | PC+PC |
High protection | Double Shell |
Surge protection level | 6KV/3KA differential mode |
IP level | IP54/IP65/IP67 |
Factory Settings | Remote control+Adaptive mode |
FCC | ● |
Certifications |
|
Criterion | IEC61000-4-5；IEC61000-4-2；IEC61000-4-3， IEC61000-4-6；GB/T 17743-2017；IEC61000-4-4； IEC61000-4-11；IEC61000-3-2；GB/T2423.10-2008； UL94-V0； |
